一、zj单级单吸离心式渣浆泵，zj渣浆泵产品概述：
zj渣浆泵的形式分为两大类，一类是zj渣浆泵，为卧式轴向吸入单极单吸离心式渣浆泵；另一类是zjl渣浆泵，为立式轴向吸入单级单吸离心式渣浆泵。渣浆泵以其先进的水力设计、结构设计达到了高效节能的显著效果，又以渣浆泵材质优良、硬度高、耐磨性好、运行平稳、加工工艺可靠等特点，深受用户信赖。渣浆泵技术可广泛应用于电力、冶金，煤炭、石油、化工、采矿、工业锅炉、河道疏通等领域。
二、zj单级单吸离心式渣浆泵，zj渣浆泵用途和适用范围
渣浆泵系列在水力设计、结构设计以及所用耐磨材料上，综合应用了国内外同类产品的优点并加以创新，具有高效节能、振动小、噪声低、运行可靠、使用寿命长、维修方便等特点，渣浆泵的综合性能居国内水平，大部分泵的效率指标居先进水平。可广泛用于电力、冶金、煤炭、建材等行业输送含有固体颗粒的浆体。如火电厂水力除灰、冶金选矿厂矿浆输送、洗煤厂煤浆及重介输送等。其允许输送的zui大浆体重量浓度cw为：灰（渣）浆和煤浆45%；矿浆和重介60%。
三、zj单级单吸离心式渣浆泵，zj渣浆泵有以下优点：
1、zj渣浆泵效率高，节电效果明显。泵站运行电流平均下降 30a，效率指标高出国内同类及国外相应泵2-10个百分点。
2、zj渣浆泵过流部件寿命长。一般能连续运行3000-4000小时，其寿命是12p-7型泵的5倍以上。
3、zj渣浆泵运行平稳、振动小、噪音低、改善了泵站的工作环境。
4、zj渣浆泵轴承箱结构合理，密封好，运行温度低。轴承使用寿命是 12p-7型泵使用326轴承的9倍以上。
5、渣浆泵过流部件设计合理，拆卸方便。 zl型渣浆泵是节能降耗，增加效益的好产品，建议广泛推广。

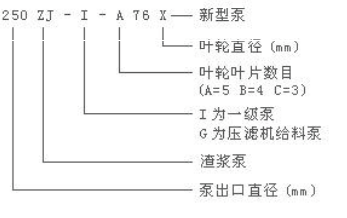

zj单级单吸离心式渣浆泵，zj渣浆泵型号及意义：
zj单级单吸离心式渣浆泵，zj渣浆泵的型式、结构特征与型号
zj渣浆泵的型式分两大类，一类是zj型，为卧式轴向吸入单级单吸离心式渣浆泵；另一类是zjl型，为立式轴向吸入单级单吸离心式渣浆泵。
1.zj渣浆泵的结构特征与型号
（1）zj渣浆泵的结构特征
zj渣浆泵的泵头部分包括泵壳、叶轮和轴封装置。泵头与托架用螺栓联结。zj渣浆泵根据需要，泵的出水口位置可按45°间隔旋转八个不同的角度安装使用。
zj渣浆泵的泵壳为双层壳体结构。zj渣浆泵外层为金属泵壳（前泵壳、后泵壳），其材料通常为ht200或qt500-7；zj渣浆泵内层壳体可用高铬合金铸铁制做（包括涡壳、前护板、后护板），或用橡胶制作（包括前涡壳、后涡壳）。
zj渣浆泵叶轮由前盖板、后盖板、叶片、背叶片构成。zj渣浆泵叶片为扭曲叶片，通常有3-6枚。背叶片分布在前盖板和后盖板的外侧，通常为8枚。zj渣浆泵叶轮的材质为高铬合金铸铁，叶轮与轴为螺纹联结。
zj渣浆泵轴封装置有副叶轮＋填料组合密封、填料密封、机械密封三种型式，见图1。
zj渣浆泵副叶轮＋填料组合密封型式由填料箱、副叶轮、水封环、填料、填料压盖、轴套组成，见图1中5。
zj渣浆泵填料密封型式由填料箱、间隔套、水封环、填料、填料压盖、轴套组成，见图1中5a。
zj渣浆泵机械密封型式由填料箱、间隔套、机械密封、压盖、轴套组成，见图1中5b。
2.zjl型渣浆泵的结构特征与型号
（1） zjl型渣浆泵的结构特征
zjl型渣浆泵主要由叶轮、涡壳、后护板、轴套、支架、支撑板、轴、轴承、轴承体等零件组成。叶轮、涡壳、后护板的材质为高铬合金铸铁，叶轮与轴采用螺纹联接，涡壳、支架、轴承体用螺栓联接。zjl型渣浆泵泵轴与电机可采用联轴器直联传动或皮带传动。zjl型渣浆泵的轴承采用油脂润滑。zjl型渣浆泵为无轴封泵。
zj单级单吸离心式渣浆泵，zj渣浆泵主要技术参数表：
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/n | |
| 350zj—f100 |
590
| 1 035 | 62.8 | 293.1 | 60.4 | 5.8 | y450-10 | 355/6000 |
| 1 988 | 59.4 | 417.6 | 77.o | y500-10 | 500/6000 | |||
| 2 339 | 55.o | 455.6 | 76.9 | y500-10 | 560/6000 | |||
| 490
| 860 | 43.3 | 167.9 | 60.4 | 4.4 | y450-12 | 220/6000 | |
| 1 651 | 41.o | 239.4 | 77.o | y500-12 | 315/6000 | |||
| 1 943 | 37.9 | 260.8 | 76.9 | y500-12 | 315/6000 | |||
| 350zj-c100 | 592 | 1643 | 60.0 | 402.3 | 66.7 | 7.4 | y500-10 | 450/6000 |
| 2900 | 49.1 | 531.1 | 73.0 | y500-10 | 630/6000 | |||
| 3502 | 43.4 | 588.5 | 70.3 | y560-10 | 710/6000 | |||
| 493 | 1370 | 41.7 | 233.2 | 66.7 | 5.1 | y500-12 | 280/6000 | |
| 2416 | 34.0 | 306.3 | 73.0 | y500-12 | 355/6000 | |||
| 2911 | 30.0 | 337.8 | 70.3 | y500-12 | 400/6000 | |||
| 350zj-a85 | 742 | 1901 | 62.1 | 487.5 | 65.9 | 10.5 | y500-8 | 560/6000 |
| 2644 | 56.1 | 523.0 | 77.2 | y500-8 | 630/6000 | |||
| 3741 | 42.4 | 609.9 | 70.8 | y500-8 | 710/6000 | |||
| 591 | 1514 | 39.4 | 246.3 | 65.9 | 6.6 | y450-10 | 280/6000 | |
| 2106 | 35.6 | 264.3 | 77.2 | y450-10 | 315/6000 | |||
| 2980 | 26.9 | 308.2 | 70.8 | y450-10 | 355/6000 | |||
| 350zj-a80 | 742 | 1552 | 56.2 | 340.1 | 69.8 | 10.5 | y450-8 | 400/6000 |
| 2227 | 50.4 | 403.5 | 75.7 | y450-8 | 450/6000 | |||
| 3575 | 28.8 | 509.5 | 55.0 | y450-8 | 560/6000 | |||
| 591 | 1236 | 35.7 | 172.0 | 69.8 | 6.6 | y450-10 | 220/6000 | |
| 1773 | 32.0 | 204.0 | 75.7 | y450-10 | 250/6000 | |||
| 2847 | 18.2 | 256.5 | 55.0 | y450-10 | 280/6000 | |||
| 300zj—a100 | 590
| 913 | 65.2 | 243.o | 66.7 | 4.1 | y450-10 | 315/6 000 |
| 1 785 | 59.7 | 361.o | 80.4 | y500-10 | 450/6 000 | |||
| 1 826 | 59.3 | 365.4 | 80.7 | y500-10 | 450/6 000 | |||
|
490
| 758 | 45.0 | 139.3 | 66.7 | 3.0 | y450-12 | 185/6 000 | |
| 1 482 | 41.2 | 206.8 | 80.4 | y450-12 | 250/6 000 | |||
| 1 517 | 40.9 | 209.4 | 80.7 | y450—12 | 250/6000 | |||
| 300zj—a95 |
590
| 867 | 58.8 | 217.9 | 63.7 | 4.1 | y450—10 | 280/6000 |
| 1 696 | 53.9 | 321.6 | 77.4 | y500-10 | 400/6000 | |||
| 1 735 | 53.5 | 325.3 | 77.7 | y500-10 | 400/6000 | |||
|
490 | 720 | 40.6 | 125.0 | 63.7 | 3.o | y450-12 | 185/6000 | |
| 1 408 | 37.2 | 184.3 | 77.4 | y450-12 | 220/6000 | |||
| 1 441 | 36.9 | 186.4 | 77.7 | y450-12 | 220/6000 | |||
| 300zj—a90 |
730
| 922 | 79.9 | 290.3 | 69.1 | 5.7 | y450-8 | 355/6000 |
| 1 648 | 73.6 | 410.3 | 80.5 | y500-8 | 500/6000 | |||
| 1 844 | 70.7 | 436.2 | 81.4 | y500-8 | 560/6000 | |||
|
590 | 745 | 52.2 | 153.3 | 69.1 | 3.9 | y450-10 | 185/6000 | |
| 1 332 | 48.1 | 216.7 | 80.5 | y450-10 | 280/6000 | |||
| 1 490 | 46.2 | 230.3 | 81.4 | y450-10 | 280/6000 | |||
| 300zj—c90 | 591 | 1189 | 50.9 | 236.4 | 69.7 | 3.6 | y450-10 | 280/6000 |
| 1987 | 45.6 | 313.8 | 78.6 | y450-10 | 355/6000 | |||
| 2393 | 42.2 | 347.5 | 79.7 | y450-10 | 400/6000 | |||
| 493 | 992 | 35.4 | 137.1 | 69.7 | 2.5 | y450-8 | 315/6000 | |
| 1657 | 31.7 | 182.1 | 78.6 | y450-8 | 450/6000 | |||
| 1996 | 29.4 | 201.9 | 79.1 | y450-8 | 450/6000 | |||
| 300zj—a85 |
730
| 871 | 71.3 | 255.9 | 66.1 | 5.6 | y450-8 | 315/6000 |
| 1 556 | 65.6 | 358.7 | 77.5 | y450-8 | 450/6000 | |||
| 1 742 | 63.1 | 381.8 | 78.4 | y450-8 | 450/6000 | |||
|
590 | 704 | 46.6 | 135.2 | 66.1 | 3.8 | y355l2-10 | 160/6000 | |
| 1 258 | 42.9 | 189.6 | 77.5 | y450-10 | 220/6000 | |||
| 1 408 | 41.2 | 201.5 | 78.4 | y450-10 | 250/6000 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
|
| r/min | m3/h | m | kw | % | m |
| kw/v |
| 300zj-a70 | 980
| 1 269 | 76.8 | 368.6 | 72.o | 7.0
| y450-6 | 450/6000 |
| 2 118 | 66.7 | 480.9 | 80.0 | y450-6 | 630/6000 | |||
| 2 333 | 64.0 | 505.8 | 80.4 | y450-6 | 630/6000 | |||
| 730
| 945 | 42.6 | 152.3 | 72.0 | 3.9
| y355l1-8 | 185/380 | |
| 1 578 | 37.o | 198.8 | 80.0 | y400-8 | 250/6000 | |||
| 1 738 | 35.5 | 209.0 | 80.4 | y400-8 | 250/6000 | |||
| 300zj-a65 | 980
| 1 178 | 66.2 | 307.8 | 69.0 | 6.6
| y450-6 | 400/6000 |
| 1 967 | 57.5 | 400.0 | 77.0 | y450-6 | 500/6000 | |||
| 2 166 | 55.2 | 420.7 | 77.4 | y450-6 | 500/6000 | |||
| 730 | 877 | 36.7 | 127.o | 69.o | 3.7 | y355m2-8 | 160/380 | |
| 1 465 | 31.9 | 165.3 | 77.o | y355l2-8 | 200/380 | |||
| 1 614 | 30.6 | 173.8 | 77.4 | y400-8 | 220/6000 | |||
| 300zj-a56 | 980
| 789 | 46.o | 148.6 | 66.5 | 5.5
| y355m2-6 | 185/380 |
| 1 415 | 40.8 | 195.6 | 80.4 | y355l2-6 | 250/380 | |||
| 1 568 | 38.8 | 204.8 | 80.9 | y355l2-6 | 250/380 | |||
|
730 | 588 | 25.5 | 61.4 | 66.5 | 3.5 | y315m-8 | 75/380 | |
| 1 054 | 22.6 | 80.7 | 80.4 | y315l2-8 | 110/380 | |||
| 1 168 | 21.5 | 84.5 | 80.9 | y315l2-8 | 110/380 | |||
| 250zj-a103 |
730
| 734 | 110.5 | 366.3 | 60.3 | 4.3
| y450-8 | 450/6ooo |
| 1 067 | 106.7 | 445.5 | 69.6 | y500-8 | 560/6000 | |||
| 1 573 | 98.9 | 568.7 | 74.5 | y500-8 | 710/6000 | |||
|
590 | 593 | 72.2 | 193.4 | 60.3 | 2.8 | y450-10 | 250/6000 | |
| 862 | 69.7 | 235.1 | 69.6 | y450-10 | 280/6000 | |||
| 1 271 | 64.6 | 300.1 | 74.5 | y450-10 | 355/6000 | |||
| 250zj-a96 |
730
| 736 | 93.7 | 290.7 | 64.6 | 5.5 | y450-8 | 355/6000 |
| 1 076 | 90.0 | 356.4 | 74.0 | y450-8 | 450/6000 | |||
| 1 466 | 84.5 | 433.6 | 77.8 | y500-8 | 560/6000 | |||
| 590 | 595 | 61.2 | 153.5 | 64.6 | 3.5 | y450-10 | 185/6000 | |
| 870 | 58.8 | 188.3 | 74.o | y450-10 | 250/6000 | |||
| 1 185 | 55.2 | 229.0 | 77.8 | y450-10 | 280/6000 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 250zj-a90 | 730
| 690 | 82.4 | 255.5 | 60.6 | 5.3
| y450-8 | 315/6000 |
| 1 009 | 79.1 | 310.5 | 70.0 | y450-8 | 400/6000 | |||
| 1 374 | 74.3 | 376.7 | 73.8 | y450-8 | 450/6000 | |||
| 590 | 558 | 53.8 | 134.9 | 60.6 | 3.4
| y355l2-10 | 160/380 | |
| 816 | 51.7 | 164.1 | 70.0 | y450-10 | 200/6000 | |||
| 1 111 | 48.5 | 198.8 | 73.8 | y450-10 | 250/6000 | |||
| 250zj-a85 | 980 | 752 | 128.7 | 446.o | 59.1 | 5.5 | y450-6 | 560/6000 |
| 1 248 | 124.4 | 587.2 | 72.0 | y500-6 | 710/6000 | |||
| 1 504 | 120.4 | 652.3 | 75.6 | y500-6 | 800/6000 | |||
| 730 | 560 | 71.4 | 184.2 | 59.1 | 3.5 | y400-8 | 220/6000 | |
| 930 | 69.o | 242.7 | 72.0 | y450-8 | 315/6000 | |||
| 1 120 | 66.8 | 269.5 | 75.6 | y450-8 | 315/6000 | |||
| 250zj-a83 | 980
| 734 | 122.7 | 422.1 | 58.1 | 5.5
| y450-6 | 500/6000 |
| 1 219 | 118.6 | 554.5 | 71.0 | y500-6 | 710/6000 | |||
| 1 469 | 114.8 | 615.6 | 74.6 | y500-6 | 800/6000 | |||
| 730 | 547 | 68.1 | 174.6 | 58.1 | 3.5 | y400-8 | 220/6000 | |
| 908 | 65.8 | 229.2 | 71.0 | y400-8 | 280/6000 | |||
| 1 094 | 63.7 | 254.4 | 74.6 | y450-8 | 315/6000 | |||
| 250zj-a80 | 980
| 708 | 114.0 | 391.8 | 56.1 | 5.4
| y450-6 | 500/6000 |
| 1 175 | 110.2 | 511.1 | 69.o | y450-6 | 630/6000 | |||
| 1 416 | 106.7 | 566.7 | 72.6 | y500-6 | 710/6000 | |||
| 730 | 527 | 63.2 | 161.7 | 56.1 | 3.4 | y400-8 | 200/6000 | |
| 875 | 61.1 | 211.o | 69.0 | y400-8 | 280/6000 | |||
| 1 054 | 59.2 | 234.1 | 72.6 | y400-8 | 280/6000 | |||
| 250zj-c80 | 594 | 891 | 38.3 | 133.2 | 69.7 | 3.3 | y355l2-10 | 160/380 |
| 1492 | 33.5 | 181.1 | 75.1 | y450-10 | 220/6000 | |||
| 1790 | 29.2 | 195.9 | 72.6 | y450-10 | 220/6000 | |||
| 250zj-a78 | 980
| 830 | 102.5 | 374.9 | 61.8 | 6.3
| y450-6 | 450/6000 |
| 1 430 | 92.1 | 500.9 | 71.6 | y450-6 | 560/6000 | |||
| 1 796 | 84.2 | 559.5 | 73.6 | y450-6 | 630/6000 | |||
| 730 | 618 | 56.9 | 155.0 | 61.8 | 3.2 | y335l1-8 | 185/380 | |
| 1 065 | 51.1 | 207.0 | 71.6 | y400-8 | 250/6000 | |||
| 1 338 | 46.7 | 231.2 | 73.6 | y400-8 | 280/6000 | |||
注：表中效率为采用填料轴封之值。
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/mim | m3/h | m | kw | % | m |
| kw/v | |
| 250zj-a75 | 980
| 600 | 97.5 | 255.7 | 62.3 | 4.1
| y400-6 | 315/6000 |
| 1 100 | 92.0 | 362.6 | 76.o | y450-6 | 450/6000 | |||
| 1 480 | 83.2 | 443.6 | 75.6 | y450-6 | 560/6000 | |||
| 730 | 447 | 54.1 | 105.7 | 62.3 | 3.o | y355m1-8 | 132/380 | |
| 819 | 51.0 | 149.7 | 76.0 | y355l1-8 | 185/380 | |||
| 1 102 | 46.2 | 183.4 | 75.6 | y400-8 | 220/6000 | |||
| 250zj-a73 | 980
| 584 | 92.4 | 239.7 | 61.3 | 4.1
| y400-6 | 280/6000 |
| 1 071 | 87.2 | 339.1 | 75.o | y400-6 | 400/6000 | |||
| 1 441 | 78.8 | 414.5 | 74.6 | y450-6 | 500/6000 | |||
| 730 | 435 | 51.3 | 99.1 | 61.3 |
3.0 | y335m1-8 | 132/380 | |
| 797 | 48.3 | 139.8 | 75.o | y335l1-8 | 185/380 | |||
| 1 073 | 43.8 | 171.6 | 74.6 | y335l2-8 | 200/380 | |||
| 250zj-a70 | 980
| 560 | 84.9 | 218.3 | 59.3 | 3.9
| y400-6 | 280/6000 |
| 1 027 | 80.1 | 306.9 | 73.0 | y400-6 | 400/6000 | |||
| 1 381 | 72.5 | 375.6 | 72.6 | y450-6 | 450/6000 | |||
| 730 | 417 | 47.1 | 90.2 | 59.3 |
2.9 | y315l2-8 | 110/380 | |
| 764 | 44.4 | 126.5 | 73.0 | y355m2-8 | 160/380 | |||
| 1 029 | 40.2 | 155.2 | 72.6 | y355l1-8 | 185/380 | |||
| 250zj-a68 | 980
| 544 | 80.1 | 203.5 | 58.3 | 3.7
| y355-6 | 250/6000 |
| 997 | 75.6 | 285.1 | 72.0 | y400-6 | 355/6000 | |||
| 1 342 | 68.4 | 349.1 | 71.6 | y450-6 | 450/6000 | |||
| 730 | 405 | 44.5 | 84.2 | 58.3 |
2.7 | y315l2-8 | 110/380 | |
| 743 | 41.9 | 117.8 | 72.o | y355m2-8 | 160/380 | |||
| 999 | 38.0 | 144.4 | 71.6 | y355l1-8 | 185/380 | |||
| 250zj-a65 | 980
| 597 | 71.0 | 178.1 | 64.8 | 4.5
| y355-6 | 220/6000 |
| 970 | 66.2 | 233.2 | 75.0 | y400-6 | 280/6000 | |||
| 1 249 | 61.4 | 271.6 | 76.9 | y400-6 | 315/6000 | |||
| 730 | 445 | 39.4 | 73.7 | 64.8 | 3.0 | y315l1-8 | 90/380 | |
| 723 | 36.7 | 96.3 | 75.0 | y355m1-8 | 132/6000 | |||
| 930 | 34.1 | 112.3 | 76.9 | y355m1-8 | 132/6000 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 250zj-a63 | 980
| 579 | 66.7 | 164.8 | 63.8 | 4.5
| y355-6 | 200/6000 |
| 940 | 62.2 | 215.2 | 74.0 | y355-6 | 250/6000 | |||
| 1 211 | 57.7 | 250.7 | 75.9 | y400-6 | 315/6000 | |||
| 730 | 431 | 37.0 | 68.1 | 63.8 | 3.0 | y315l1-8 | 90/380 | |
| 701 | 34.5 | 89.o | 74.0 | y315l2-8 | 110/380 | |||
| 901 | 32.0 | 103.4 | 75.9 | y355m1-8 | 132/380 | |||
| 250zj-a60 | 980 | 551 | 60.5 | 146.9 | 61.8 | 4.2
| y355m2-6 | 185/380 |
| 895 | 56.4 | 190.9 | 72.0 | y355l2-6 | 250/380 | |||
| 1 153 | 52.3 | 222.2 | 73.9 | y400-6 | 280/6000 | |||
| 730 | 411 | 33.6 | 60.7 | 61.8 | 2.8 | y315m-8 | 75/380 | |
| 667 | 31.3 | 79.0 | 72.o | y315l2-8 | 110/380 | |||
| 858 | 29.1 | 92.0 | 73.9 | y315l2-8 | 110/380 | |||
| 200zj-a85 | 980 | 441 | 133.7 | 321.1 | 50.o | 5.0
| y400-6 | 400/6000 |
| 858 | 128.2 | 437.9 | 68.4 | y450-6 | 560/6000 | |||
| 907 | 127.9 | 448.1 | 70.5 | y450-6 | 560/6000 | |||
| 730 | 329 | 74.2 | 133.o | 50.0 | 2.8 | y355m2-8 | 160/380 | |
| 639 | 71.1 | 180.g | 68.4 | y400-8 | 220/6000 | |||
| 676 | 71.0 | 185.4 | 70.5 | y400-8 | 220/6000 | |||
| 200zj-a75 | 980 | 450 | 102.9 | 205.4 | 61.4 | 4.5
| y355-6 | 250/6000 |
| 750 | 95.7 | 271.5 | 72.0 | y400-6 | 355/6000 | |||
| 900 | 91.0 | 306.4 | 72.8 | y400-6 | 355/6000 | |||
| 730 | 335 | 57.1 | 84.8 | 61.4 | 3.o | y315l2-8 | 110/380 | |
| 559 | 53.1 | 112.3 | 72.0 | y355m1-8 | 132/380 | |||
| 670 | 50.5 | 126.6 | 72.8 | y355m2-8 | 160/380 | |||
| 200zj-a73 | 980 | 438 | 97.5 | 192.5 | 60.4 | 4.5 | y355-6 | 250/6000 |
| 730 | 90.7 | 254.0 | 71.o | y400-6 | 315/6000 | |||
| 876 | 86.2 | 286.4 | 71.8 | y400-6 | 355/6ooo | |||
| 730 | 326 | 54.1 | 79.5 | 60.4 | 3.o | y315l2-8 | 110/380 | |
| 544 | 50.3 | 105.o | 71.0 | y355m1-8 | 132/380 | |||
| 652 | 47.8 | 118.2 | 71.8 | y355m2-8 | 160/380 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 200zj-a70 | 980 | 409 | 86.4 | 172.5 | 55.8 | 3.8 | y355m3-6 | 200/380 |
| 738 | 82.3 | 230.7 | 71.7 | y400-6 | 280/6000 | |||
| 976 | 77.6 | 272.8 | 75.6 | y400.6 | 315/6000 | |||
| 730 | 305 | 47.9 | 71.3 | 55.8 | 2.8 | y315l1-8 | 90/380 | |
| 550 | 45.7 | 95.5 | 71.7 | y355m1-8 | 132/380 | |||
| 727 | 43.1 | 112.9 | 75.6 | y355m1-8 | 132/380 | |||
| 200zj-a68 | 980 | 397 | 81.5 | 160.8 | 54.8 | 3.8 | y355m3-6 | 200/380 |
| 717 | 77.7 | 214.6 | 70.7 | y355-6 | 250/380 | |||
| 948 | 73.2 | 253.3 | 74.6 | y400-6 | 315/6000 | |||
| 730 | 296 | 45.2 | 66.5 | 54.8 | 2.8 | y315l1-8 | 90/380 | |
| 534 | 43.1 | 88.7 | 70.7 | y315l2-8 | 110/380 | |||
| 706 | 40.7 | 104.9 | 74.6 | y315m1-8 | 132/380 | |||
| 200zj-a65 | 980 | 470 | 72.o | 145.8 | 63.2 | 4.3 | y355m2-6 | 185/380 |
| 820 | 68.1 | 197.5 | 77.o | y355-6 | 250/6000 | |||
| 950 | 65.6 | 213.2 | 79.6 | y355-6 | 250/6000 | |||
| 730 | 350 | 40.0 | 60.3 | 63.2 | 2.5 | y315m-8 | 75/380 | |
| 611 | 37.8 | 81.7 | 77.0 | y315l2-8 | 110/380 | |||
| 708 | 36.4 | 88.2 | 79.6 | y315l2-8 | 110/380 | |||
| 200zj-a63 | 980 | 456 | 67.6 | 135.o | 62.2 | 4.3 | y355m1-6 | 160/380 |
| 795 | 64.o | 182.3 | 76.o | y355-6 | 220/6000 | |||
| 921 | 61.6 | 196.6 | 78.6 | y355-6 | 250/6000 | |||
| 730 | 339 | 37.5 | 55.7 | 62.2 | 2.5 | y315m-8 | 75/380 | |
| 592 | 35.5 | 75.3 | 76.o | y315l2-8 | 110/380 | |||
| 686 | 34.2 | 81.3 | 78.6 | y315l2-8 | 110/380 | |||
| 200zj-a60 | 980 | 435 | 62.0 | 114.o | 64.4 | 4.o | y315l2-6 | 132/380 |
| 740 | 58.0 | 146.1 | 80.o | y355m2-6 | 185/380 | |||
| 870 | 55.5 | 159.0 | 82.7 | y355m2-6 | 185/380 | |||
| 730 | 324 | 34.4 | 47.1 | 64.4 | 2.5 | y315m-8 | 75/380 | |
| 551 | 32.2 | 60.4 | 80.0 | y315l1-8 | 90/380 | |||
| 648 | 30.8 | 65.7 | 82.7 | y315l1-8 | 90/380 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 200zj-a58 | 980 | 421 | 57.9 | 104.7 | 63.4 | 4.o | y315l2-6 | 132/380 |
| 715 | 54.2 | 133.6 | 79.0 | y355m1-6 | 160/380 | |||
| 841 | 51.9 | 145.5 | 81.7 | y355m2-6 | 185/380 | |||
| 730 | 313 | 32.1 | 43.2 | 63.4 | 2.5 | y315s-8 | 55/380 | |
| 533 | 30.1 | 55.3 | 79.0 | y315m-8 | 75/380 | |||
| 626 | 28.8 | 60.1 | 81.7 | y315m-8 | 75/380 | |||
| 200zjg-b45 | 1480 | 272 | 72.9 | 82.8 | 65.3 | 10.7 | y280m-4 | 90/380 |
| 447 | 57.5 | 102.9 | 68.0 | y315m1-4 | 132/380 | |||
| 538 | 47.0 | 111.1 | 62.0 | y315m1-4 | 132/380 | |||
| 980 | 180 | 32.0 | 24.0 | 65.3 | 4.7 | y225m-6 | 30/380 | |
| 296 | 25.2 | 29.9 | 68.0 | y250m-6 | 37/380 | |||
| 356 | 20.6 | 32.2 | 62.0 | y250m-6 | 37/380 | |||
| 150zj-a71 | 980 | 284 | 93.8 | 133.9 | 54.2 | 4.o | y355m1-6 | 160/380 |
| 486 | 89.3 | 174.3 | 67.8 | y355l1-6 | 220/380 | |||
| 552 | 87.1 | 188.4 | 69.5 | y355l1-6 | 220/380 | |||
| 730 | 212 | 52.0 | 55.4 | 54.2 | 2.4 | y315m1-8 | 75/380 | |
| 362 | 49.6 | 72.1 | 67.8 | y315m2-8 | 90/380 | |||
| 411 | 48.3 | 77.8 | 695 | y315m2-8 | 90/380 | |||
| 150zj-a70 | 980 | 186 | 91.2 | 95.4 | 48.4 | 3.o | y315l2-6 | 132/380 |
| 285 | 87.1 | 115.8 | 58.4 | y355m1-6 | 160/380 | |||
| 401 | 79.8 | 139.9 | 62.3 | y355m2-6 | 185/380 | |||
| 730 | 139 | 50.6 | 39.6 | 48.4 | 2.o | y315s-8 | 55/380 | |
| 212 | 48.3 | 47.7 | 58.4 | y315m-8 | 75/380 | |||
| 299 | 44.3 | 57.9 | 62.3 | y315m-8 | 75/380 | |||
| 150zj-a65 | 980 | 300 | 75.7 | 112.o | 55.2 | 4.o | y315l2-6 | 132/380 |
| 500 | 73.0 | 144.1 | 69.o | y355m2-6 | 185/380 | |||
| 600 | 69.4 | 161.5 | 70.2 | y355m3-6 | 200/380 | |||
| 730 | 223 | 42.0 | 46.2 | 55.2 | 2.5 | y315m-8 | 75/380 | |
| 372 | 40.5 | 59.5 | 69.o | y315m-8 | 75/380 | |||
| 447 | 38.5 | 66.8 | 70.2 | y315l1-8 | 90/380 | |||
| 150zj-a63 | 980 | 291 | 71.1 | 104.o | 54.2 | 4.0 | y315l2-6 | 132/380 |
| 485 | 68.6 | 133.2 | 68.0 | y355m1-6 | 160/380 | |||
| 582 | 65.2 | 149.3 | 69.2 | y355m2-6 | 185/380 | |||
| 730 | 216 | 39.5 | 42.9 | 54.2 | 2.5 | y315s-8 | 55/380 | |
| 361 | 38.o | 54.9 | 68.o | y315m-8 | 75/380 | |||
| 433 | 36.2 | 61.7 | 69.2 | y315m-8 | 75/380 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 150zj-a60 | 980 | 270 | 63.5 | 80.2 | 58.2 | 3.8 | y315l1-6 | 110/380 |
| 470 | 60.5 | 107.6 | 720 | y315l2-6 | 132/380 | |||
| 550 | 58.7 | 117.9 | 74.6 | y355m1-6 | 160/380 | |||
| 730 | 201 | 35.2 | 33.1 | 58.2 | 2.5 | y280m-8 | 45/380 | |
| 350 | 33.6 | 44.5 | 72.0 | y315s-8 | 55/380 | |||
| 410 | 32.6 | 48.8 | 74.6 | y315m-8 | 75/380 | |||
| 150zj-a58 | 980 | 261 | 59.3 | 73.7 | 57.2 | 3.8 | y315m-6 | 90/380 |
| 454 | 56.5 | 98.4 | 71.0 | y315l2-6 | 132/380 | |||
| 532 | 54.9 | 108.1 | 73.6 | y315l2-6 | 132/380 | |||
| 730 | t94 | 32.9 | 30.4 | 57.2 | 2.5 | y280s-8 | 37/380 | |
| 338 | 31.4 | 40.7 | 71.0 | y315s-8 | 55/380 | |||
| 396 | 30.5 | 44.7 | 73.6 | y315s-8 | 55/380 | |||
| 150zj-c58 | 980
| 268 | 61.o | 78.7 | 566 | 3.2
| y315l1-6 | 110/380 |
| 458 | 56.o | 105.5 | 66.2 | y355l2-6 | 132/380 | |||
| 596 | 51.2 | 120.3 | 69.1 | y355m1-6 | 160/380 | |||
| 730 | 200 | 33.8 | 32.5 | 56.6 | 2.0 | y280m-8 | 45/380 | |
| 341 | 31.1 | 43.6 | 66.2 | y315s-8 | 55/380 | |||
| 444 | 28.4 | 49.7 | 69.1 | y315m-8 | 75/380 | |||
| 150zj-a57 | 980 | 190 | 56.3 | 63.2 | 46.1 | 2.9 | y315m-6 | 90/380 |
| 301 | 55.4 | 77.6 | 58.5 | y315l1-6 | 110/380 | |||
| 427 | 52.9 | 92.4 | 66.6 | y315l1-6 | 110/380 | |||
| 730 | 142 | 31.2 | 26.2 | 46.1 | 1.8 | y280s-8 | 37/380 | |
| 224 | 30.7 | 32.0 | 585 | y280m-8 | 45/380 | |||
| 318 | 29.4 | 38.2 | 66.6 | y315s-8 | 55/380 | |||
| 50zj-a55 | 980 | 248 | 53.4 | 65.3 | 55.2 | 3.5 | y315m-6 | 90/380 |
| 431 | 50.8 | 86.4 | 69.0 | y315l1-6 | 110/380 | |||
| 504 | 49.3 | 94.5 | 71.6 | y315l1-6 | 110/380 | |||
| 730 | 184 | 29.6 | 26.9 | 55.2 | 2.3 | y280s-8 | 37/380 | |
| 321 | 28.2 | 35.7 | 69.o | y280m-8 | 45/380 | |||
| 376 | 27.4 | 39.2 | 71.6 | y315s-8 | 55/380 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 150zj-a50 | 980 | 230 | 43.1 | 42.6 | 63.3 | 3.o | y280m-6 | 55/380 |
| 380 | 40.0 | 55.2 | 75.0 | y315s-6 | 75/380 | |||
| 460 | 37.8 | 61.7 | 76.8 | y315s-6 | 75/380 | |||
| 730 | 171 | 23.9 | 17.6 | 63.3 | 2.5 | y250m-8 | 30/380 | |
| 283 | 22.2 | 22.8 | 75.o | y250m-8 | 30/380 | |||
| 343 | 21.o | 25.5 | 76.8 | y280s-8 | 37/380 | |||
| 150zjg-b45 | 1480 | 223 | 72.5 | 75.7 | 58.1 | 7.3 | y280m-4 | 90/380 |
| 372 | 60.1 | 93.2 | 65.4 | y315s-4 | 110/380 | |||
| 458 | 48.8 | 100.5 | 60.5 | y315s-4 | 110/380 | |||
| 980 | 147 | 31.8 | 22.0 | 58.1 | 3.2 | y225m-6 | 30/380 | |
| 247 | 26.3 | 27.0 | 65.4 | y250m-6 | 37/380 | |||
| 303 | 21.4 | 29.2 | 60.5 | y250m-6 | 37/380 | |||
| 150zj-a48 | 980 | 221 | 39.7 | 38.4 | 62.3 | 3.o | y280m-6 | 55/380 |
| 365 | 36.9 | 49.6 | 74.o | y315s-6 | 75/380 | |||
| 442 | 34.8 | 55.3 | 75.8 | y315s-6 | 75/380 | |||
| 730 | 164 | 22.0 | 15.8 | 62.3 | 2.5 | y225m-8 | 22/380 | |
| 272 | 20.5 | 20.5 | 74.0 | y250m-8 | 30/380 | |||
| 329 | 19.4 | 22.9 | 75.8 | y250m-8 | 30/380 | |||
| 150zj-c42 | 1 480 | 300 | 62.8 | 80.2 | 64.0 | 4.5 | y315s-4 | 11.0/380 |
| 450 | 58.0 | 96.1 | 74.0 | y315m-4 | 132/380 | |||
| 550 | 54.3 | 106.5 | 76.4 | y315m-4 | 132/380 | |||
| 980 | 199 | 27.5 | 23.3 | 64.0 | 2.2 | y225m-6 | 30/380 | |
| 298 | 25.4 | 27.9 | 74.0 | y250m-6 | 37/380 | |||
| 364 | 23.8 | 30.9 | 76.4 | y280s-6 | 45/380 | |||
| 100zj-a50 | 1 480 | 180 | 100.2 | 85.7 | 573 | 4.5 | y3t5s-4 | 110/380 |
| 300 | 95.0 | 113.3 | 68.5 | y315m-4 | 132/380 | |||
| 360 | 91.6 | 131.7 | 68.2 | y315l1-4 | 160/380 | |||
| 980 | 119 | 43.9 | 24.8 | 57.3 | 2.5 | y225m-6 | 30/380 | |
| 199 | 41.7 | 33.0 | 68.5 | y280s-6 | 45/380 | |||
| 238 | 40.2 | 38.2 | 68.2 | y280m-6 | 55/380 | |||
| 100zj-a46 | 1 480 | 166 | 84.8 | 69.3 | 55.3 | 4.2 | y280m-4 | 90/380 |
| 276 | 80.4 | 90.9 | 66.5 | y315s-4 | 110/380 | |||
| 331 | 77.5 | 105.5 | 66.2 | y315m-4 | 132/380 | |||
| 980 | 109 | 37.2 | 20.0 | 55.3 | 23 | y225m-6 | 30/380 | |
| 183 | 35.3 | 26.5 | 66.5 | y250m-6 | 37/380 | |||
| 219 | 34.0 | 30.6 | 66.2 | y250m-6 | 37/380 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 100zj-a42 | 1 480 | 140 | 70.8 | 50.3 | 53.7 | 4.0 | y280s-4 | 75/380 |
| 245 | 67.0 | 65.7 | 68.o | y280m-4 | 90/380 | |||
| 275 | 65.5 | 69.7 | 70.4 | y280m-4 | 90/380 | |||
| 980 | 93 | 31.o | 14.6 | 53.7 | 2.5 | y200l2-6 | 22/380 | |
| 162 | 29.4 | 19.1 | 68.o | y225m-6 | 30/380 | |||
| 182 | 28.7 | 20.2 | 70.4 | y225m-6 | 30/380 | |||
| 1oozj-a39 | 1 480 | 130 | 61.o | 41.8 | 51.7 | 3.8 | y250m-4 | 55/380 |
| 228 | 57.8 | 54.4 | 66.o | y280s-4 | 75/380 | |||
| 255 | 56.5 | 57.4 | 68.4 | y280s-4 | 75/380 | |||
| 980 | 86 | 26.7 | 12.1 | 51.7 | 2.4 | y200l1-6 | 18.5/380 | |
| 150 | 25.4 | 15.7 | 660 | y200l2-6 | 22/380 | |||
| 169 | 24.7 | 16.6 | 68.4 | y225m-6 | 30/380 | |||
| 100zj-b42 | 1 480 | 176 | 66.8 | 55.7 | 57.5 | 5.1 | y280s-4 | 75/380 |
| 309 | 60.5 | 73.3 | 69.5 | y280m-4 | 90/380 | |||
| 365 | 56.9 | 79.0 | 71.6 | y280m-4 | 90/380 | |||
| 980 | 117 | 29.3 | 16.2 | 57.5 | 2.5 | y200l2-6 | 22/380 | |
| 205 | 26.5 | 21.3 | 69.5 | y225m-6 | 30/380 | |||
| 242 | 24.9 | 22.9 | 71.6 | y225m-6 | 30/380 | |||
| 100zjg-b42 | 1 480 | 96 | 70.7 | 35.6 | 51.9 | 2.8 | y225m-4 | 45/380 |
| 149 | 63.8 | 42.4 | 61.0 | y250m-4 | 55/380 | |||
| 205 | 56.3 | 49.7 | 63.2 | y280s-4 | 75/380 | |||
| 980 | 64 | 31.0 | 10.4 | 51.9 | 1.8 | y180l-6 | 15/380 | |
| 99 | 28.o | 12.4 | 61.o | y200l1-6 | 18.5/380 | |||
| 136 | 24.7 | 14.5 | 63.2 | y200l2-6 | 22/380 | |||
| 100zj-a36 | 1 480 | 130 | 49.5 | 28.9 | 60.7 | 3.5 | y225s-4 | 37/380 |
| 220 | 45.o | 38.0 | 71.o | y250m-4 | 55/380 | |||
| 245 | 43.4 | 40.4 | 71.6 | y250m-4 | 55/380 | |||
| 980 | 86 | 21.7 | 8.4 | 60.7 | 2.o | y180l-6 | 15/380 | |
| 146 | 19.7 | 11.0 | 71.o | y180l-6 | 15/380 | |||
| 162 | 19.0 | 11.7 | 71.6 | y200l1-6 | 18.5/380 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀 余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 100zj-a33 | 1 480 | 119 | 41.6 | 23.o | 58.7 | 3.2 | y200l-4 | 30/380 |
| 202 | 37.8 | 30.1 | 69.o | y225s-4 | 37/380 | |||
| 225 | 36.5 | 32.1 | 69.6 | y225m-4 | 45/380 | |||
| 980 | 79 | 18.2 | 6.7 | 58.7 | 1.8 | y160l-6 | 11/380 | |
| 134 | 16.6 | 8.8 | 690 | y180l-6 | 15/380 | |||
| 149 | 16.0 | 9.3 | 69.6 | y180l-6 | 15/380 | |||
| 80zj-a52 | 1 480 | 107 | 109.8 | 82.5 | 38.8 | 4.3 | y315s-4 | 110/380 |
| 182 | 105.5 | 100.6 | 52.0 | y315m-4 | 132/380 | |||
| 242 | 99.0 | 115.9 | 56.3 | y315l1-4 | 160/380 | |||
| 980 | 71 | 48.1 | 24.0 | 38.8 | 2.1 | y225m-6 | 30/380 | |
| 121 | 46.3 | 29.3 | 52.0 | y250m-6 | 37/380 | |||
| 160 | 43.4 | 33.6 | 56.3 | y280s-6 | 45/380 | |||
| 80zj-a42 | 1 480 | 130 | 70.4 | 41.8 | 596 | 4.2 | y250m-4 | 55/380 |
| 170 | 67.2 | 47.9 | 65.0 | y280s-4 | 75/380 | |||
| 204 | 64.2 | 53.5 | 66.7 | y280s-4 | 75/380 | |||
| 980 | 86 | 309 | 12.1 | 59.6 | 2.5 | y200l1-6 | 18.5/380 | |
| 113 | 29.5 | 14.0 | 65.o | y200l2-6 | 22/380 | |||
| 135 | 28.1 | 15.5 | 66.7 | y200l2-6 | 22/380 | |||
| 80zj-a39 | 1 480 | 121 | 60.7 | 34.7 | 57.6 | 4.0 | y225m-4 | 45/380 |
| 158 | 57.9 | 39.5 | 63.0 | y250m-4 | 55/380 | |||
| 189 | 55.4 | 44.1 | 64.7 | y250m-4 | 55/380 | |||
|
980 | 80 | 26.6 | 10.1 | 57.6 | 2.4 | y180l-6 | 15/380 | |
| 105 | 25.4 | 11.5 | 63.0 | y200l1-6 | 18.5/380 | |||
| 125 | 24.2 | 12.8 | 64.7 | y200l1～6 | 18.5/380 | |||
| 80zj-a36 | 1 480 | 98 | 51.4 | 23.6 | 58.2 | 3.7 | y200l-4 | 30/380 |
| 140 | 48.o | 27.7 | 66.0 | y225s-4 | 37/380 | |||
| 190 | 42.7 | 32.6 | 67.7 | y225m-4 | 45/380 | |||
| 980 | 65 | 22.5 | 6.8 | 58.2 | 2.5 | y160l-6 | 11/380 | |
| 93 | 21.0 | 8.1 | 66.0 | y160l-6 | 11/380 | |||
| 126 | 18.7 | 9.5 | 67.7 | y180l-6 | 15/380 | |||
| 80zj-a33 | 1 480 | 90 | 43.2 | 18.8 | 56.2 | 3.4 | y200l-4 | 30/380 |
| 128 | 40.3 | 21.9 | 64.0 | y200l-4 | 30/380 | |||
| 174 | 35.9 | 25.9 | 65.7 | y225s-4 | 37/380 | |||
| 980 | 60 | 18.9 | 5.5 | 56.2 | 2.3 | y160m-6 | 7.5/380 | |
| 85 | 17.6 | 6.4 | 64.0 | y160l-6 | 11/380 | |||
| 116 | 15.7 | 7.5 | 65.7 | y160l-6 | 11/380 | |||
| 型号 | 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀 余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 65zj-a30 | 1 460 | 47 | 34.8 | 7.9 | 56.2 | 3.0 | y160m-4 | 11/380 |
| 62 | 33.9 | 9.2 | 62.0 | y160l-4 | 15/380 | |||
| 79 | 32.0 | 10.8 | 63.5 | y160l-4 | 15/380 | |||
| 960 | 31 | 15.0 | 2.3 | 56.2 | 2.o | y132m1-6 | 4/380 | |
| 41 | 14.7 | 2.6 | 62.o | y132m2-6 | 5.5/380 | |||
| 52 | 13.8 | 3.1 | 63.5 | y132m2-6 | 5.5/380 | |||
| 型号
| 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 65zj-a27 | 1 460 | 42 | 28.2 | 6.o | 54.2 | 2.7 | y160m-4 | 11/380 |
| 56 | 27.5 | 7.o | 60.0 | y160m-4 | 11/380 | |||
| 71 | 25.9 | 8.1 | 61.5 | y160m-4 | 11/380 | |||
| 960 | 28 | 12.2 | 1.7 | 54.2 | 1.8 | y132s-6 | 3/380 | |
| 37 | 11.9 | 2.0 | 60.0 | y132m1-6 | 4/380 | |||
| 47 | 11.2 | 2.3 | 61.5 | y132m1-6 | 4/380 | |||
| 50zj-a50 | 1 480 | 57 | 110.7 | 50.7 | 33.9 | 3.8 | y280s-4 | 75/380 |
| 91 | 105.5 | 60.9 | 42.9 | y280s-4 | 75/380 | |||
| 111 | 99.8 | 66.9 | 45.1 | y280m-4 | 90/380 | |||
| 980 | 38 | 48.5 | 14.8 | 33.9 | 3.0 | y200l2-6 | 22/380 | |
| 60 | 46.3 | 17.6 | 42.9 | y225m-6 | 30/380 | |||
| 74 | 43.8 | 19.6 | 45.1 | y225m-6 | 30/380 | |||
| 50zj-a46 | 1 480 | 48 | 85.8 | 34.8 | 32.2 | 2.9
| y225m-4 | 45/380 |
| 77 | 82.3 | 41.4 | 41.7 | y250m-4 | 55/380 | |||
| 94 | 79.9 | 45.8 | 44.7 | y250m-4 | 55/380 | |||
| 970 | 31 | 36.9 | 9.7 | 32.2 | 1.4 | y180l-6 | 15/380 | |
| 50 | 35.4 | 11.6 | 41.7 | y180l-6 | 15/380 | |||
| 62 | 34.3 | 13.o | 44.7 | y200l1-6 | 18.5/380 | |||
| 50zj-a33 | 1 480 | 26 | 42.5 | 9.2 | 32.8 | 6.0 | y160l.4 | 15/380 |
| 40 | 40.o | 10.7 | 40.6 | y180m.4 | 18.5/380 | |||
| 54 | 34.5 | 12.3 | 41.4 | y180m-4 | 18.5/380 | |||
| 960 | 17 | 17.9 | 2.5 | 32.8 | 2.9 | y132m1-6 | 4/380 | |
| 26 | 16.8 | 2.9 | 40.6 | y132m2-6 | 5.5/380 | |||
| 35 | 14.5 | 3.3 | 41.4 | y132m2-6 | 5.5/380 | |||
| 型号
| 转速 | 流量 | 扬程 | 轴功率 | 效率 | 必需汽蚀余量 | 配套电机 | |
| 型号 | 功率/电压 | |||||||
| r/min | m3/h | m | kw | % | m |
| kw/v | |
| 40zj-a19 | 2 930 | 16.3 | 57.1 | 6.5 | 39.2 | 4.9 | y160m1-2 | 11/380 |
| 30.0 | 54.9 | 8.1 | 55.4 | y160m1-2 | 11/380 | |||
| 34.9 | 53.7 | 8.7 | 58.8 | y160m1-2 | 11380 | |||
| 1 430 | 8.o | 13.6 | 0.8 | 39.2 | 1.3 | y90l-4 | 1.5/380 | |
| 14.6 | 13.1 | 0.9 | 55.4 | y90l.4 | 1.5/380 | |||
| 17.0 | 12.8 | 1.0 | 58.8 | y100l1-4 | 2.2/380 | |||
| 40zj-a17 | 2 900 | 9.4 | 44.6 | 3.4 | 33.2 | 4.5 | y132s1-2 | 5.5/380 |
| 17.9 | 42.7 | 4.2 | 49.5 | y132s2.2 | 7.5/380 | |||
| 23.4 | 39.3 | 4.8 | 52.4 | y132s2.2 | 7.5/380 | |||
| 1 400 | 4.5 | 10.3 | o.4 | 33.2 | 2.5 | y801-4 | 0.55/380 | |
| 8.6 | 9.9 | o.5 | 49.5 | y90s-4 | 1.1/380 | |||
| 11.3 | 9.1 | o.5 | 52.4 | y90s-4 | 1.1/380 | |||
联系qq：1597533116
联系邮箱：equanby@163.com
传真：86-21-59266228
联系地址：上海市青浦区金泽工业园区
扫一扫 微信咨询
©2024 上海鄂泉泵业有限公司 尊龙凯时人生就博官网登录的版权所有 备案号： googlesitemap 总访问量：660482
产品推荐区：yw型液下排污泵、不锈钢潜水排污泵、isg立式管道离心泵
销售部
咨询电话
